DF-150P

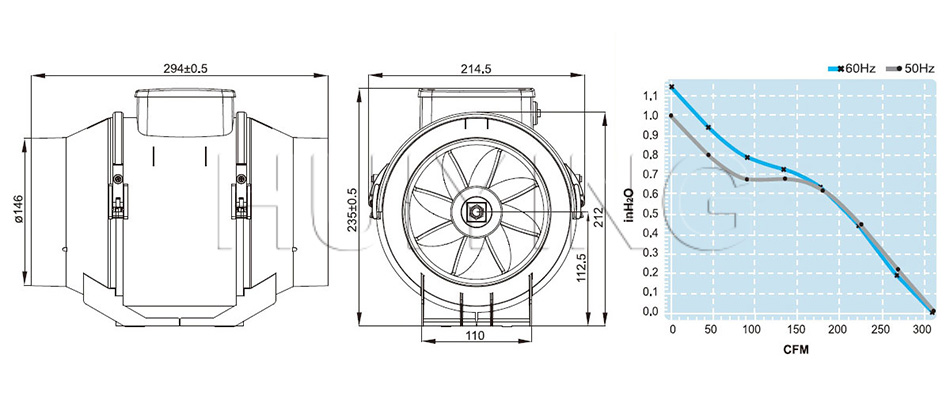

产品简介：管道风扇DF-150P

产品详情：

Model	DF150P11-H	DF150P11-L	DF150P23-H	DF150P23-L
Rated Voltage	115 V	115 V	230 V	230 V
Frequency	50/50 Hz	50/50 Hz	50/50 Hz	50/50 Hz
Input Power	65/75 W	50/52 W	65/75 W	50/52 W
Rated Current	0.54/0.65 A	0.43/0.46 A	0.27/0.32 A	0.21/0.23 A
Locked Current	0.67/0.68 A	0.46/0.47 A	0.32/0.33 A	0.23/0.24 A
Speed	2000/1900 RPM	1400/1300 RPM	2000/1900 RPM	1400/1300 RPM
Maximum Air Flow	8.5/8.2 m3/min.	5.7/5.1 m3/min.	8.5/8.2 m3/min.	5.7/5.1 m3/min.
Maximum Air Flow	300/290 CFM	200/180 CFM	300/290 CFM	200/180 CFM
Maximum Pressure	26/29 mmH2O	19/17 mmH2O	26/29 mmH2O	19/17 mmH2O
Maximum Pressure	1.02/1.14 InchH2O	0.75/0.67 InchH2O	1.02/1.14 InchH2O	0.75/0.67 InchH2O
Noise	62/61 dB	53/50 dB	62/61 dB	53/50 dB
Weights	2.6 kg	2.6 kg	2.6 kg	2.6 kg
